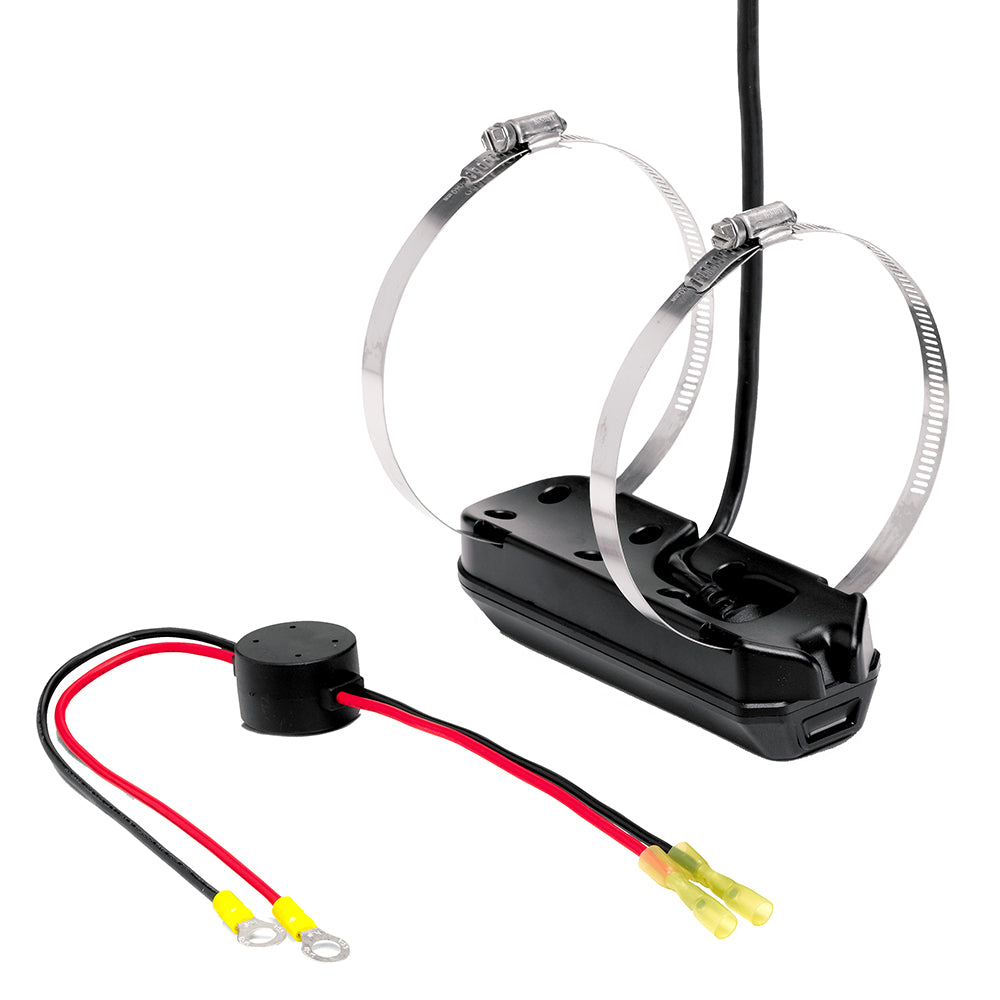

Humminbird XTM-14 Transducer MEGA DI+ CHIRP 15'

Overview

Built for serious anglers running SOLIX systems who need tournament-grade imaging on their trolling motor. If you're dropping this transducer on an 80+ lb thrust Minn Kota, you're getting three separate imaging modes stacked into one compact unit — MEGA Down Imaging at multiple frequencies, dual-spectrum CHIRP sonar, and real-time temperature data. This is the setup for anglers who don't compromise on structure detail or water column clarity.

This is a dedicated trolling motor transducer that mounts directly to your Minn Kota shaft. It delivers photographic-quality images of bottom structure, suspended baitfish, and hard targets, plus conventional 2D sonar coverage to 1200 feet. You'll see what's below your boat with surgical precision — whether you're scanning shallow weeds or deep structure. The 15-foot cable keeps wiring clean on compact setups.

Key Features

• MEGA Down Imaging Plus — three simultaneous frequency ranges (1075–1150 kHz, 800 kHz, and 455 kHz) produce ultra-detailed bottom images out to 200 feet, 125 feet, and 400 feet respectively — you can toggle between range and detail depending on what you're hunting.
• Dual Spectrum CHIRP 2D Sonar — 150–220 kHz frequency band with switchable narrow and wide modes reaches 1200 feet and cuts through thermoclines to find suspended fish in open water.
• Built-in Temperature Sensor — logs water temperature in real time, so you can correlate bite patterns to thermal breaks without a separate probe.
• Trolling Motor Mount — bolts directly to Minn Kota shafts 80 lbs thrust and higher; the compact 7.15" × 2.3" footprint clears the prop and skeg on heavier motors.
• SOLIX Compatible — works with all SOLIX and APEX models at full transducer capability, giving you the full imaging arsenal on your primary unit.

Specs & What's Included

Compatibility: All SOLIX and APEX fish finder models. Trolling motor mounting requires a Minn Kota motor with 80 lbs of thrust or greater. This transducer will not fit Minn Kota motors rated below 80 lbs due to shaft spacing constraints. Not sure if this works with your setup? Call or text us at (833) 831-4077 — we'll tell you straight.

In the Box: XTM-14-HW transducer with trolling motor bracket and 15-foot cable. Transducer only — your SOLIX head unit is sold separately.
