Airmar B175HW Transducer CHIRP Wide Beam 12° Thru-Hull

Overview

Built for inshore and pelagic anglers running boats up to 36 feet who need high-resolution sonar with maximum coverage under the hull. If you fish shallow structure, suspended baitfish, or deep water and want to see both detail and the bigger picture on one transducer, this is your choice.

The B175HW is a wide-beam, high-frequency transducer that gives you twice the coverage of a standard narrow-beam unit without sacrificing bottom detail or fish separation. It runs across a full 100 kHz bandwidth and handles CHIRP technology, which means your sonar will punch through clutter and show you cleaner fish marks. Install it thru-hull on a fiberglass or wood hull with deadrise up to 24 degrees, and you'll get reliable depth and temperature data down to 500 feet.

Key Features

• Wide 25-Degree Beamwidth — covers twice the area under your boat compared to narrow-beam transducers — you'll detect fish suspended in the upper water column and see complete fish arches on your display instead of missing targets between passes.
• 150–250 kHz High Frequency — delivers superior shallow-water performance and excellent bottom detail — ideal for resolving structure, distinguishing fish from debris, and working depths from the shallows down to 500 feet.
• CHIRP Ready with 100 kHz Total Bandwidth — runs the full frequency range in one transducer, including the standard 200 kHz fishing frequency — you get maximum flexibility without swapping hardware.
• 1 kW Power Output — strong acoustic pulse cuts through thermoclines and suspended particles — you'll maintain performance in stained water and heavy algae conditions where other transducers fade.
• Tilted Element Housing — ceramic element is angled to match your hull's deadrise and installed nearly flush with the bottom — this orientation maximizes echo return to the transducer and keeps your sonar accurate even at speed.
• Depth and Temperature Sensing — tracks water temperature in real time — use it to find thermocline breaks and stay on seasonal bite patterns without a separate sensor.

Specs & What's Included

Compatibility: Connects to Garmin fishfinders and chartplotters via 8-pin connector. This transducer is CHIRP-ready and works with any Garmin unit equipped with an 8-pin transducer port. Not sure if this works with your Garmin? Call or text us at (833) 831-4077 — we'll tell you straight.

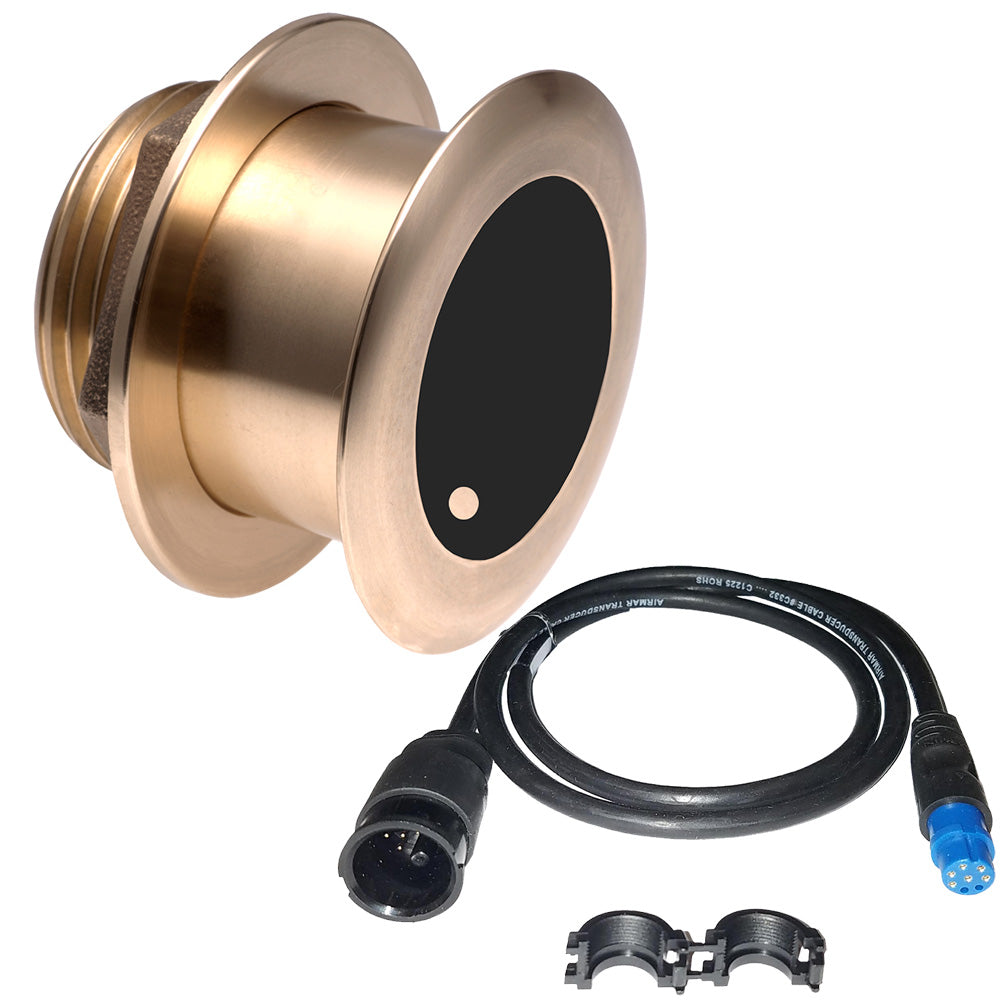

What You Get: The B175HW transducer and Garmin 8-pin mix & match cable. You'll need to drill a 3-3/4-inch hole in your hull and install the thru-hull fitting — this is a job for a professional unless you've done it before.
