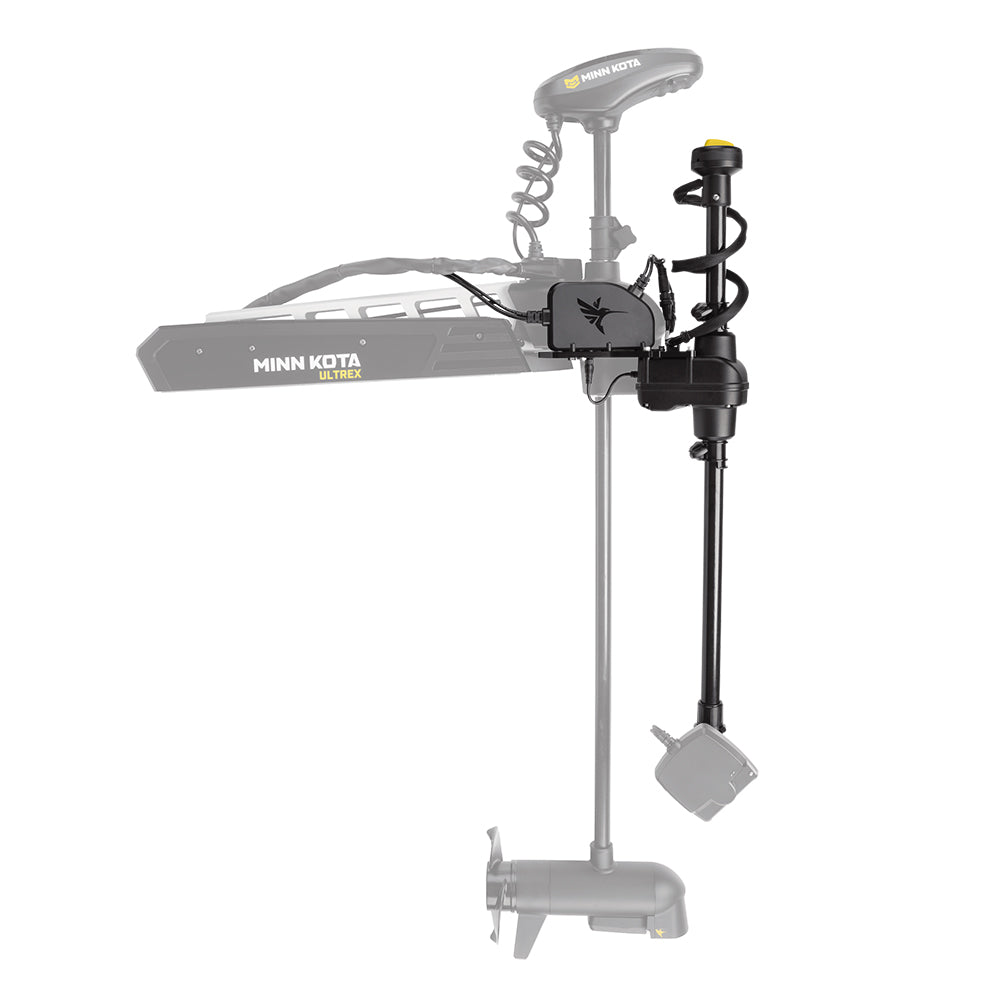

Humminbird MEGA Live TargetLock Adapter Ultrex 45" 52" Accessory

Overview

Built for anglers running Minn Kota Ultrex trolling motors who want live sonar imaging locked on structure while maintaining full trolling motor control—including Spot-Lock. This adapter kit bridges your MEGA Live transducer and Ultrex motor, giving you independent directional control of your live sonar beam separate from how your boat moves.

This is the kit you need if you already own a MEGA Live transducer and Ultrex 45" or 52" motor but don't have TargetLock set up yet. It mounts independently of your motor's steering shaft, so you're not sacrificing sonar capability to hold position. The result: you can watch fish and structure move through your live view in real-time while your boat stays locked to that same spot.

Key Features

• Independent Sonar Mount — TargetLock mounts separately from the trolling motor shaft, meaning you get full Spot-Lock and all trolling motor functions without giving up your sonar view.
• Directional Lock on Structure — Set your MEGA Live beam to lock onto a specific direction, and it stays oriented on that structure even as your boat drifts or moves. You never lose sight of what you're watching.
• Multiple Control Options — Steer the sonar beam from the included wireless foot pedal, your trolling motor foot pedal (with compatible i-Pilot Link motors), your Humminbird control head, or an optional hand remote.
• MEGA Live Imaging Modes — Choose Down (full view below), Forward (structure out front and below), or Landscape (wide top-down view). Real-time clarity with no gaps in sonar coverage—you see fish and structure as they move.
• MEGA Live Sweep — Generates a constant 120-degree sweep across your path to identify structure and fish while you maintain trolling motor control. Requires heading source (AS GPS HS or Minn Kota Heading Sensor with i-Pilot Link).
• One-Boat Network Integration — Connects directly to compatible Humminbird control heads via Ethernet with no external sonar box required. Supports multiple sonar sources like MEGA 360 Imaging on the same head.

Specs & What's Included

Compatibility: Works exclusively with Minn Kota Ultrex 45" and 52" trolling motors. Compatible Humminbird control heads are all APEX models, all SOLIX models, and HELIX 8-12 G3N and HELIX 7-15 G4N models (must be MEGA Side Imaging or MEGA Down Imaging versions). Your MEGA Live transducer must be purchased separately. Not sure if this works with your setup? Call or text us at (833) 831-4077—we'll tell you straight.

In the Box: MEGA Live Steering Assembly, Wireless Foot Pedal, Ultrex Mounting Kit and Hardware, 20' Ethernet Cable, 10' Power Cable. MEGA Live Imaging Transducer and Minn Kota Ultrex trolling motor sold separately.
