Humminbird MEGA Live TargetLock Adapter Kit Ultrex 60"

Overview

Who This Is For: You're running a Minn Kota Ultrex trolling motor with 60" shaft and a MEGA Live transducer, and you want live sonar that stays locked on structure while you navigate freely. This adapter kit is built for anglers who refuse to sacrifice boat control for sonar precision — whether you're sight-fishing shallow structure or hunting suspended fish in open water.

Product Summary: This is the mounting and control system that lets your MEGA Live transducer beam stay fixed on a spot or structure while your Ultrex motor operates independently — Spot-Lock, Steer, heading input, all of it. You get real-time imaging in three viewing modes (Down, Forward, Landscape) without losing a single degree of trolling motor control. On the water, that means you can lock your eyes on a brush pile or a school while you position your boat however you need to fish it.

Key Features

• TargetLock Directional Lock — keeps your MEGA Live beam oriented toward structure or a compass bearing even as the boat drifts or moves — you never lose sight of what you're hunting, regardless of wind or current.

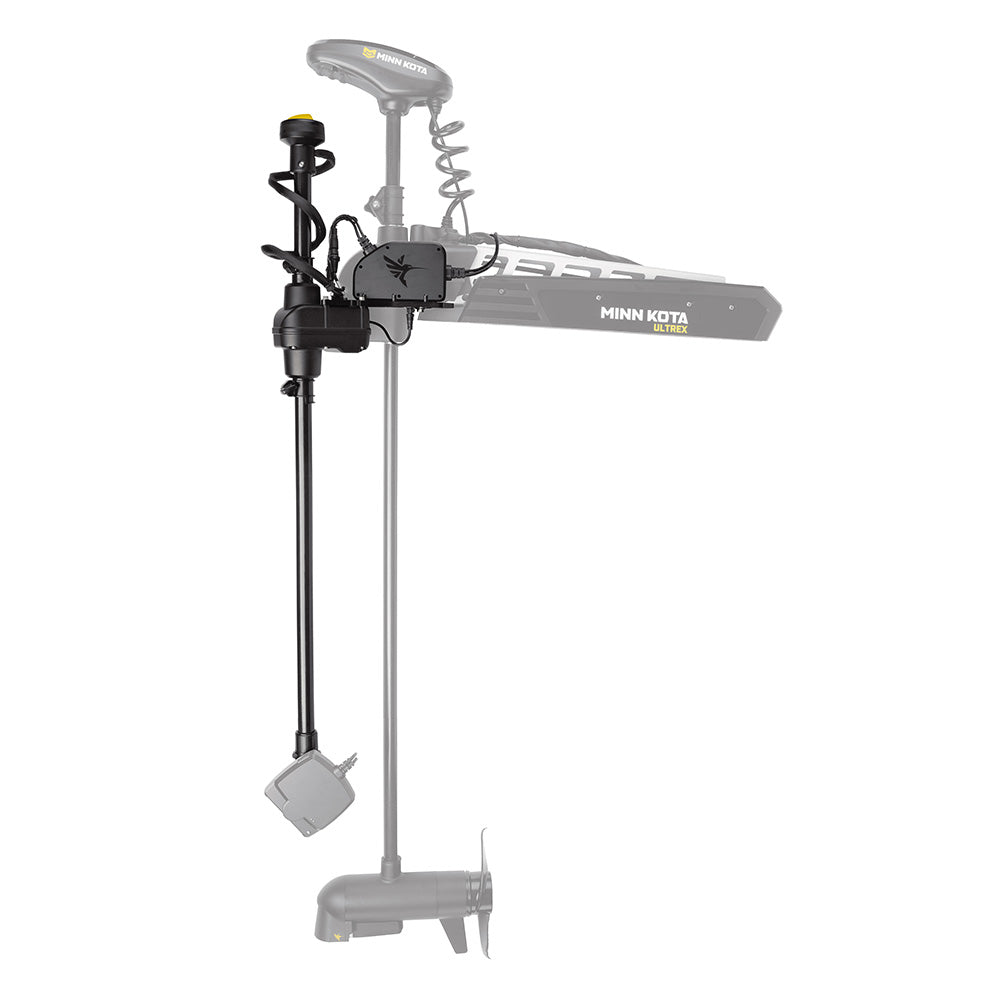

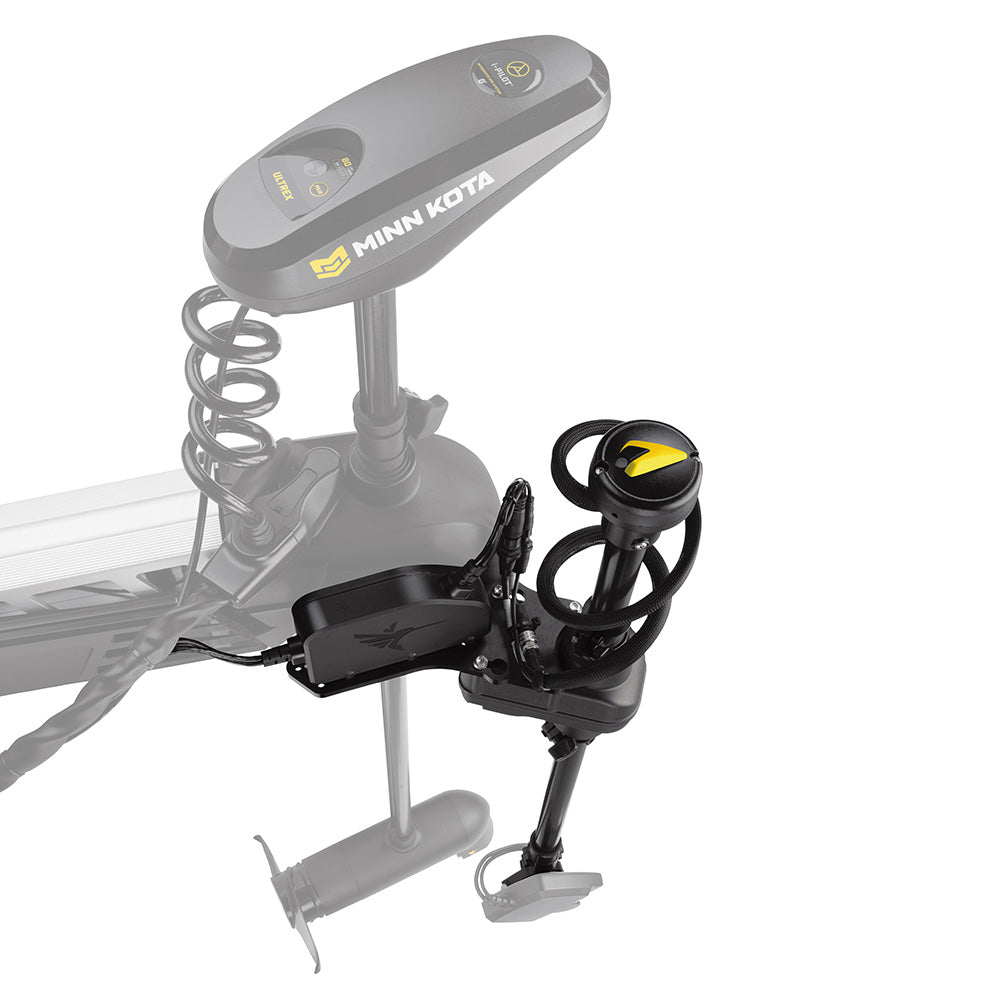

• Independent Mounting — the TargetLock assembly mounts separately from the trolling motor shaft, meaning you get full use of Spot-Lock, Steer, and all Ultrex features without compromise.
• Multiple Control Options — operate TargetLock from the included foot pedal, your Minn Kota foot pedal (if you have i-Pilot Link), your Humminbird screen, or an optional hand remote — choose what works best for your fishing style.
• MEGA Live Sweep — delivers a constant 120-degree sonar sweep in front of your boat to identify structure and fish while you maintain full trolling motor control (requires heading input from AS GPS HS or Minn Kota Heading Sensor with i-Pilot Link Ultrex).
• MEGA Live Imaging — photographic-quality real-time sonar with no blind spots, powered by MEGA Imaging detail and clarity across the entire screen.
• Three Viewing Modes — Down Mode shows full coverage below your boat; Forward Mode displays partial coverage below and ahead; Landscape Mode gives you a wide top-down perspective looking out and around — pick the view that matches your presentation and structure type.
• One-Boat Network Integration — connects directly to APEX, SOLIX, or HELIX G3N/G4N control heads via Ethernet, unlocking exclusive features like Minn Kota Steer and shared heading data with no external sonar box required.

Specs & What's Included

Compatibility: This adapter kit works exclusively with Minn Kota Ultrex and Ultrex QUEST trolling motors with 60" shaft. On the Humminbird side, it connects to all APEX models, all SOLIX models, and HELIX 8-12 G3N and HELIX 7-15 G4N models — but only if your control head has built-in MEGA Side Imaging or MEGA Down Imaging. Your MEGA Live transducer (sold separately) plugs into the TargetLock assembly. Not sure if this works with your setup? Call or text us at (833) 831-4077 — we'll tell you straight.

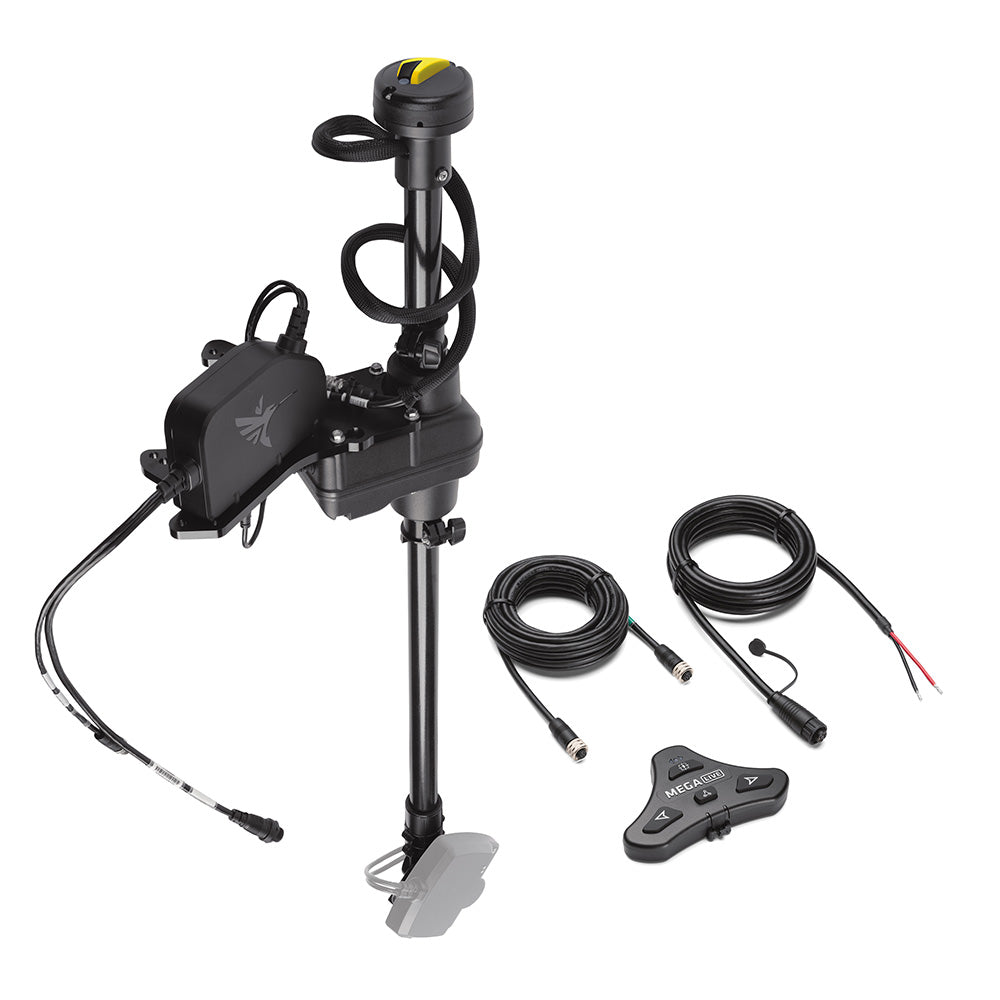

In the Box: MEGA Live Steering Assembly, wireless foot pedal, Ultrex-specific mounting kit and hardware, 20' Ethernet cable, and 10' power cable. Your MEGA Live transducer and Ultrex trolling motor are sold separately.
