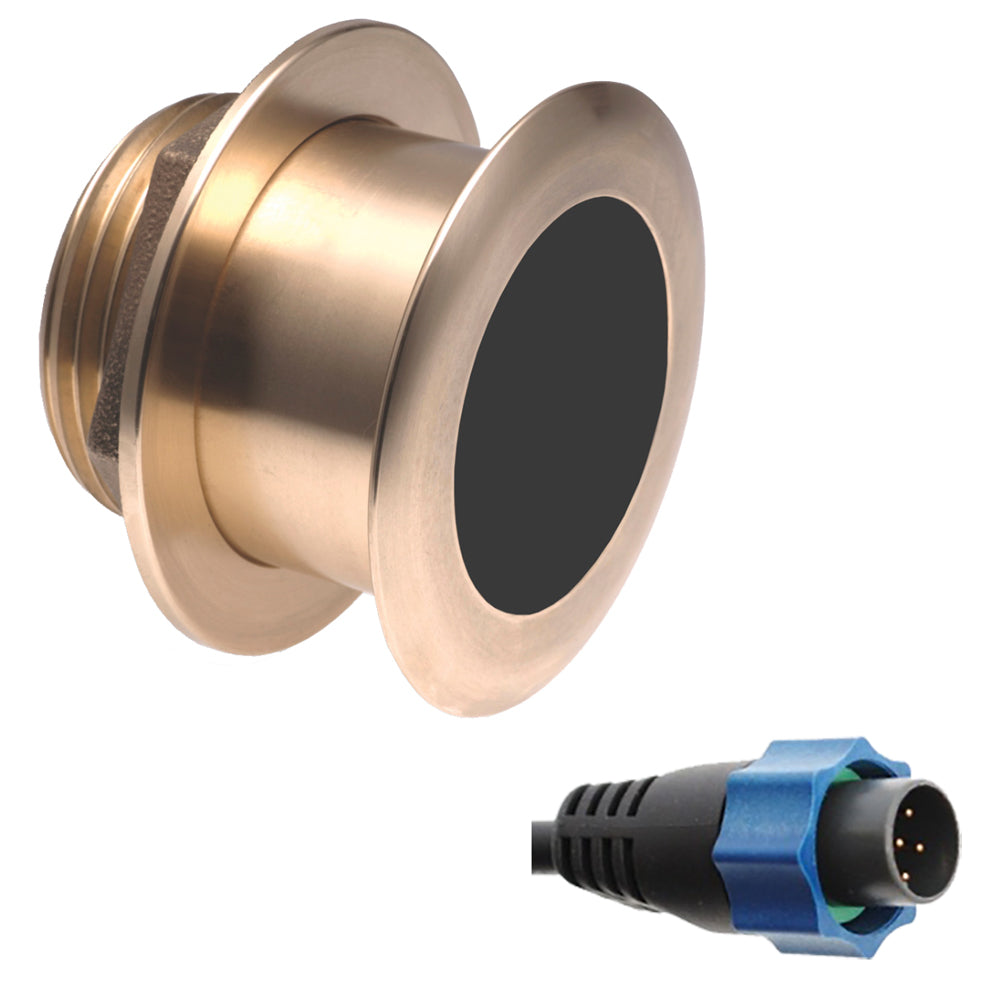

Airmar B164 Transducer 1kW 0° Thru Hull

Overview

Built for tournament and sport-fishing anglers running fast, trailered boats where hull fairings aren't an option. If you're running hard between spots and need clean sonar data on a tight installation envelope, the B164 delivers without the complications of external housings or custom fairing work.

The B164 is a 1kW bronze thru-hull transducer engineered for speed and reliability. It pairs dual-frequency capability with a fast-response temperature sensor, giving you both broad coverage and precision depth on the same head. At 1000W of power, you'll get strong returns even in thick cover and rough conditions — and the low-profile design means no drag penalty on your hull.

Key Features

• 1000W Power Output — delivers strong sonar returns in dense cover, murky water, and rough conditions — you'll see fish and structure other anglers miss.
• Dual-Frequency (50kHz / 200kHz) — 50kHz gives you wide coverage and deep reach for structure and suspended fish; 200kHz gives you precise bottom definition and target separation in shallow water — switch between them on the water based on what you're fishing.
• Fast-Response Temperature Sensor — tracks thermocline shifts and water temperature changes in real time — critical for offshore fishing and seasonal pattern changes.
• Low-Profile Bronze Housing — installs flush with your hull on boats with 0-7 degree deadrise — no external fairing required, which means zero performance penalty and less maintenance.
• 0° Tilt Angle — engineered specifically for boats with minimal hull deadrise — you get optimal beam angle without compromise.
• 3.875" Installation Hole — fits standard thru-hull mounts on tournament and production boats — straightforward installation with no fabrication.

Specs & What's Included

Compatibility: This model features the blue connector (BL) and is compatible with Lowrance HDS series fish finders, Simrad NSE series chartplotters, and many current and legacy Lowrance units. Not sure if this works with your setup? Call or text us at (833) 831-4077 — we'll tell you straight.

Performance: Maximum depth capability is 1200-1800 ft at 50kHz and 500-800 ft at 200kHz. Beam angles are 22 x 20° at 50kHz and 6 x 6° at 200kHz.

Installation: 3.875" hole diameter (98mm). Zero degree tilt angle for hull deadrise of 0-7 degrees.
