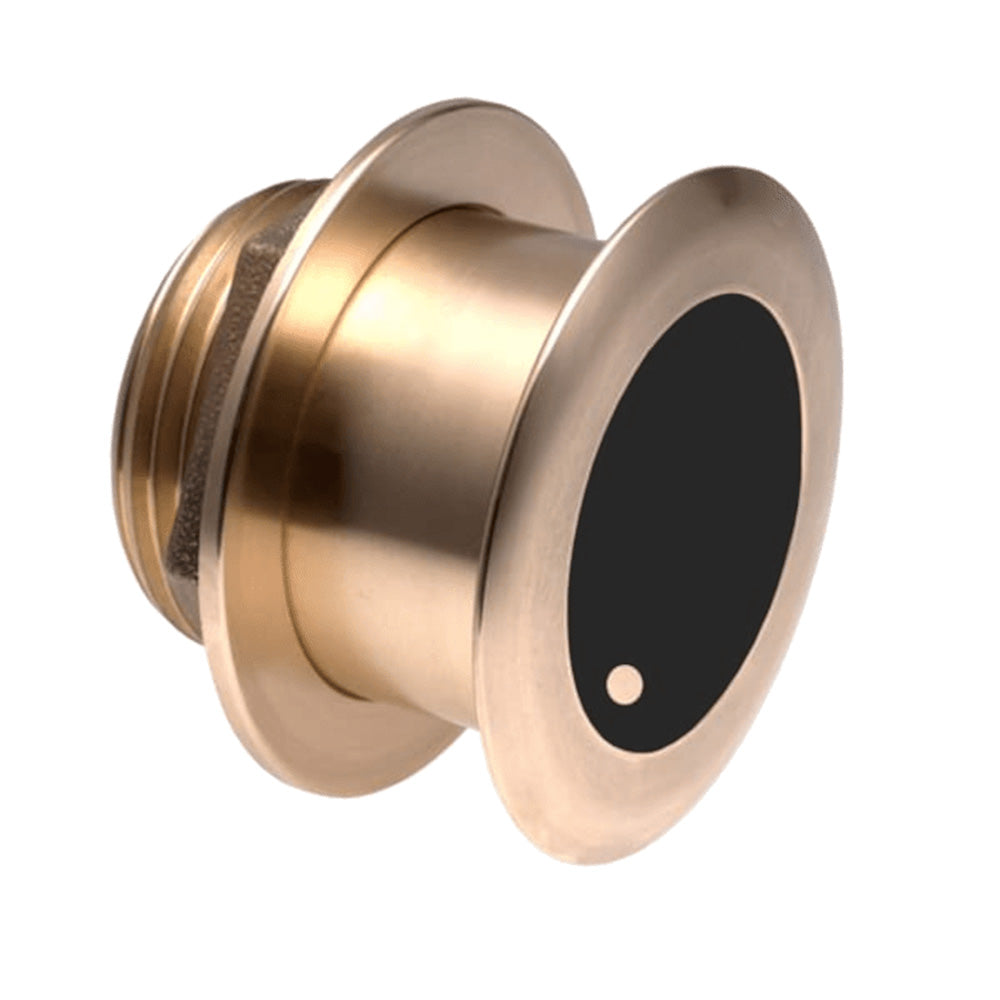

Airmar B164 Transducer 1 kW Bronze Thru-Hull 50/200 kHz

Overview

Built for center-console and trailered boats where hull space is tight and you need serious sonar power without a fairing. If you run a fast boat that sits on bunks, tow it regularly, or fish in depths beyond 200 feet, this is the transducer that gives you 1 kW performance in a low-profile package.

The B164 is a dual-frequency thru-hull transducer that delivers full 1 kW power from a bronze housing that barely protrudes below your hull—less than a quarter inch. You get 50 kHz for deep-water distance and 200 kHz for target separation and detail. It mounts flush, it won't slow you down, and it connects to any 600W or 1 kW echo sounder on the market.

Key Features

• Dual-frequency sonar (50/200 kHz) — covers shallow structure with precision and reaches deep water with wide coverage — you'll mark fish at any depth from 0 to 1,800 feet without changing transducers.
• 1 kW power without a fairing — full professional-grade punch in a compact design — your sounder will display crisp detail and fast response even in rough water.
• Low-profile bronze housing (less than 6.35 mm below hull) — sits on trailer rollers and bunks without interference — your boat runs at full speed and handles the same whether you're trailering or floating.
• Tilted Element design — ceramic arrays are angled internally to produce a perfectly vertical beam directly below your boat — maximum energy where you need it, regardless of your hull's deadrise angle.
• Fast water temperature sensing — gives you real-time thermocline data to dial in seasonal patterns — essential for targeting cold-water fish in summer or warm-water refuges in winter.
• Rated for hulls with 0° to 7° deadrise — engineered specifically for center-console and moderate-V hulls — confirms compatibility before you drill.

Specs & What's Included

Compatibility: Works with any 600W or 1 kW Airmar-compatible echo sounder. Connects via Airmar 9-Pin (MM1) connector. The transducer is part of the Mix & Match Series—you'll need to source your own cable to connect to your sounder. Not sure if this works with your setup? Call or text us at (833) 831-4077—we'll tell you straight.

In the Box: B164 Bronze Thru-Hull Transducer with 2M (6.5') cable. Cable connector is sold separately—confirm compatibility with your echo sounder before purchase.

Physical Specs: Hole size 95 mm (3-3/4"), usable shaft length 71 mm (2.80"), maximum vessel length up to 11 m (36'), weight 2.7 kg (6 lbs). Maximum depth: 549 m (1,800') on 50 kHz, 244 m (800') on 200 kHz.
