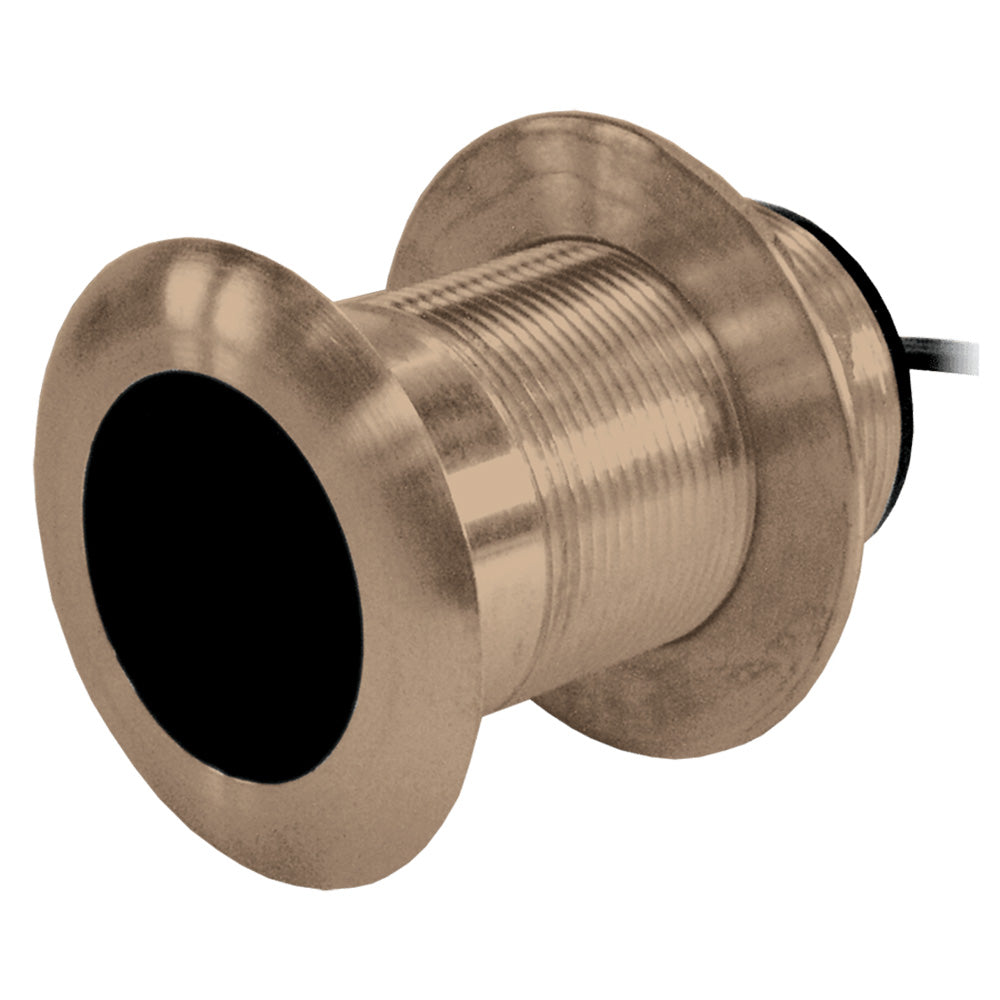

Airmar B150 Transducer Medium CHIRP 12° Tilt
Overview
Who This Is For: Freshwater and inland anglers fishing shallow to medium depths who want clean target separation without overpaying for features you don't need. The B150 makes sense if you're running a Garmin XS chartplotter and want a dedicated CHIRP transducer that keeps your sonar sharp on lakes, rivers, and reservoirs.
Product Summary: The B150 is a medium-frequency CHIRP transducer built for anglers who fish in clear water where definition matters. It sweeps 95–155 kHz and delivers a wider beam pattern than high-frequency options, giving you a larger viewing area with cleaner fish targets. This is what happens when you stop chasing depth ratings you'll never use and focus on what actually works: precise imaging in the water column where fish live.
Key Features
- Medium-Frequency CHIRP (95–155 kHz) — sweeps a 60 kHz bandwidth from one transducer to deliver multiple frequencies simultaneously — you see better target separation and clearer individual fish marks instead of a crowded sonar screen.
- Expanded Viewing Area — 26° to 17° beamwidth on the medium frequency — wider cone means you cover more bottom and suspended structure on each pass, especially useful when you're working new water.
- Depth Capability to 2,500 Feet — rated for shallow water and medium depths depending on bottom composition and water conditions — realistic depth range for inland and freshwater applications.
- Fast-Response Water Temperature — integrated sensor reads temperature in real time — dial in your presentations based on actual conditions instead of guessing.
- Bronze B619 Housing — corrosion-resistant construction built to last in freshwater environments — one less thing to worry about when you're running hard.
Specs & What's Included
Compatibility: This transducer is designed for Garmin XS Series chartplotters with 8-pin connectivity. The B150 mounts through fiberglass or wood hulls with deadrise angles of 0–7°, so verify your hull type and transom angle before ordering. Not sure if this works with your setup? Call or text us at (833) 831-4077 — we'll tell you straight.
